MONKEYTOE BRIDGES

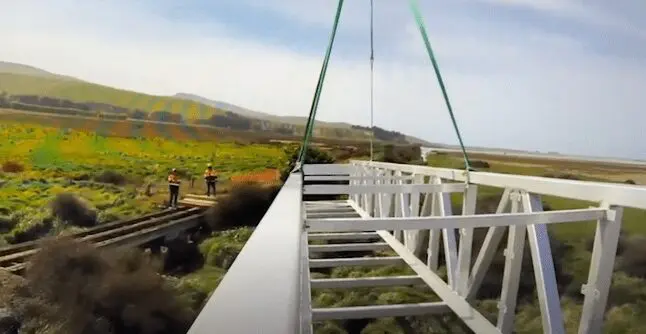

Trail & Service Bridge

Lightweight cost-effective 2.5kPa bridge option capable of spanning up to 16.8m in length with 3 different width options 700mm, 1200mm & 1800mm.

Ready to discuss your next project?

1800 953 047

NZ & AU Project Consultant

Ben Thomas

[email protected]

NZ & AU Project Consultant

Fernando Prestidge

[email protected]

Trusted by:

Lyttleton Port

Christchurch City Council

Auckland Council

NZ Navy

OMV

DOC

Port of Auckland

PrimePort

Opotiki District Council

CentrePort Wellington

ARC Design Solutions

PRICING

The Monkeytoe Trail & Service Bridge comes in 4 different widths. Please see below for our pricing.

Trail & SERVICE Bridge - 700mm WIDE

Code	Description	Width	Length	SQM	Price AUD
KBTS07.03B.042.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 4.2m Span, 4.6m Deck Bridge Kit	0.7	4.6	2.94	$11,100.00
KBTS07.04B.056.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 5.6m Span, 6m Deck Bridge Kit	0.7	6	3.92	$12,400.00
KBTS07.05B.070.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 7m Span, 7.4m Deck Bridge Kit	0.7	7.4	4.9	$15,100.00
KBTS07.06B.084.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 8.4m Span, 8.8m Deck Bridge Kit	0.7	8.8	5.88	$17,100.00
KBTS07.07B.098.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 9.8m Span, 10.2m Deck Bridge Kit	0.7	10.2	6.86	$19,700.00
KBTS07.08B.112.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 11.2m Span, 11.6m Deck Bridge Kit	0.7	11.6	7.84	$21,500.00
KBTS07.09B.126.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 12.6m Span, 13m Deck Bridge Kit	0.7	13	8.82	$23,500.00
KBTS07.10B.140.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 14m Span, 14.4m Deck Bridge Kit	0.7	14.4	9.8	$25,100.00
KBTS07.11B.154.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 15.4m Span, 15.8m Deck Bridge Kit	0.7	15.8	10.78	$27,600.00
KBTS07.12B.168.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 16.8m Span, 17.2m Deck Bridge Kit	0.7	17.2	11.76	$28,700.00

Trail & SERVICE Bridge - 1200mm WIDE

Code	Description	Width	Length	SQM	Price AUD
KBTS12.03B.042.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 4.2m Span, 4.6m Deck Bridge Kit	1.2	4.6	5.04	$11,900.00
KBTS12.04B.056.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 5.6m Span, 6m Deck Bridge Kit	1.2	6	6.72	$13,600.00
KBTS12.05B.070.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 7m Span, 7.4m Deck Bridge Kit	1.2	7.4	8.4	$16,600.00
KBTS12.06B.084.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 8.4m Span, 8.8m Deck Bridge Kit	1.2	8.8	10.08	$18,900.00
KBTS12.07B.098.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 9.8m Span, 10.2m Deck Bridge Kit	1.2	10.2	11.76	$21,800.00
KBTS12.08B.112.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 11.2m Span, 11.6m Deck Bridge Kit	1.2	11.6	13.44	$23,800.00
KBTS12.09B.126.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 12.6m Span, 13m Deck Bridge Kit	1.2	13	15.12	$26,100.00
KBTS12.10B.140.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 14m Span, 14.4m Deck Bridge Kit	1.2	14.4	16.8	$28,900.00
KBTS12.11B.154.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 15.4m Span, 15.8m Deck Bridge Kit	1.2	15.8	18.48	$31,800.00
KBTS12.12B.168.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 16.8m Span, 17.2m Deck Bridge Kit	1.2	17.2	20.16	$34,900.00

Trail & SERVICE Bridge - 1500mm WIDE

Code	Description	Width	Length	SQM	Price AUD
KBTS15.03B.042.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 4.2m Span, 4.6m Deck Bridge Kit	1.5	4.6	6.3	$12,800.00
KBTS15.04B.056.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 5.6m Span, 6m Deck Bridge Kit	1.5	6	8.4	$16,400.00
KBTS15.05B.070.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 7m Span, 7.4m Deck Bridge Kit	1.5	7.4	10.5	$19,500.00
KBTS15.06B.084.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 8.4m Span, 8.8m Deck Bridge Kit	1.5	8.8	12.6	$23,100.00
KBTS15.07B.098.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 9.8m Span, 10.2m Deck Bridge Kit	1.5	10.2	14.7	$26,500.00
KBTS15.08B.112.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 11.2m Span, 11.6m Deck Bridge Kit	1.5	11.6	16.8	$30,300.00
KBTS15.09B.126.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 12.6m Span, 13m Deck Bridge Kit	1.5	13	18.9	$33,500.00
KBTS15.10B.140.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 14m Span, 14.4m Deck Bridge Kit	1.5	14.4	21	$36,200.00
KBTS15.11B.154.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 15.4m Span, 15.8m Deck Bridge Kit	1.5	15.8	23.1	$41,500.00
KBTS15.12B.168.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 16.8m Span, 17.2m Deck Bridge Kit	1.5	17.2	25.2	$45,100.00

Trail & SERVICE Bridge - 1800mm WIDE

Code	Description	Width	Length	SQM	Price AUD
KBTS18.03B.042.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 4.2m Span, 4.6m Deck Bridge Kit	1.8	4.6	7.56	$14,200.00
KBTS18.04B.056.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 5.6m Span, 6m Deck Bridge Kit	1.8	6	10.08	$19,100.00
KBTS18.05B.070.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 7m Span, 7.4m Deck Bridge Kit	1.8	7.4	12.6	$23,900.00
KBTS18.06B.084.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 8.4m Span, 8.8m Deck Bridge Kit	1.8	8.8	15.12	$28,100.00
KBTS18.07B.098.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 9.8m Span, 10.2m Deck Bridge Kit	1.8	10.2	17.64	$32,900.00
KBTS18.08B.112.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 11.2m Span, 11.6m Deck Bridge Kit	1.8	11.6	20.16	$37,500.00
KBTS18.09B.126.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 12.6m Span, 13m Deck Bridge Kit	1.8	13	22.68	$41,900.00
KBTS18.10B.140.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 14m Span, 14.4m Deck Bridge Kit	1.8	14.4	25.2	$46,800.00
KBTS18.11B.154.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 15.4m Span, 15.8m Deck Bridge Kit	1.8	15.8	27.72	$51,200.00
KBTS18.12B.168.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 16.8m Span, 17.2m Deck Bridge Kit	1.8	17.2	30.24	$55,100.00

DOWNLOADS

Trail & SERVICE Bridge - 700mM WIDE

Code	Description	Link
KBTS07.03B.042.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 4.2m Span, 4.6m Deck Bridge Kit	Download
KBTS07.04B.056.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 5.6m Span, 6m Deck Bridge Kit	Download
KBTS07.05B.070.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 7m Span, 7.4m Deck Bridge Kit	Download
KBTS07.06B.084.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 8.4m Span, 8.8m Deck Bridge Kit	Download
KBTS07.07B.098.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 9.8m Span, 10.2m Deck Bridge Kit	Download
KBTS07.08B.112.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 11.2m Span, 11.6m Deck Bridge Kit	Download
KBTS07.09B.126.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 12.6m Span, 13m Deck Bridge Kit	Download
KBTS07.10B.140.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 14m Span, 14.4m Deck Bridge Kit	Download
KBTS07.11B.154.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 15.4m Span, 15.8m Deck Bridge Kit	Download
KBTS07.12B.168.KIT	KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 16.8m Span, 17.2m Deck Bridge Kit	Download

Trail & SERVICE Bridge - 1200mn WIDE

Code	Description	Link
KBTS12.03B.042.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 4.2m Span, 4.6m Deck Bridge Kit	Download
KBTS12.04B.056.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 5.6m Span, 6m Deck Bridge Kit	Download
KBTS12.05B.070.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 7m Span, 7.4m Deck Bridge Kit	Download
KBTS12.06B.084.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 8.4m Span, 8.8m Deck Bridge Kit	Download
KBTS12.07B.098.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 9.8m Span, 10.2m Deck Bridge Kit	Download
KBTS12.08B.112.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 11.2m Span, 11.6m Deck Bridge Kit	Download
KBTS12.09B.126.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 12.6m Span, 13m Deck Bridge Kit	Download
KBTS12.10B.140.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 14m Span, 14.4m Deck Bridge Kit	Download
KBTS12.11B.154.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 15.4m Span, 15.8m Deck Bridge Kit	Download
KBTS12.12B.168.KIT	KITSET BRIDGES TRAIL & SERVICES – 1200mm Wide, 16.8m Span, 17.2m Deck Bridge Kit	Download

Trail & SERVICE Bridge - 1500mn WIDE

Code	Description	Link
KBTS15.03B.042.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 4.2m Span, 4.6m Deck Bridge Kit	Download
KBTS15.04B.056.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 5.6m Span, 6m Deck Bridge Kit	Download
KBTS15.05B.070.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 7m Span, 7.4m Deck Bridge Kit	Download
KBTS15.06B.084.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 8.4m Span, 8.8m Deck Bridge Kit	Download
KBTS15.07B.098.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 9.8m Span, 10.2m Deck Bridge Kit	Download
KBTS15.08B.112.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 11.2m Span, 11.6m Deck Bridge Kit	Download
KBTS15.09B.126.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 12.6m Span, 13m Deck Bridge Kit	Download
KBTS15.10B.140.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 14m Span, 14.4m Deck Bridge Kit	Download
KBTS15.11B.154.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 15.4m Span, 15.8m Deck Bridge Kit	Download
KBTS15.12B.168.KIT	KITSET BRIDGES TRAIL & SERVICES – 1500mm Wide, 16.8m Span, 17.2m Deck Bridge Kit	Download

Trail & SERVICE Bridge - 1800mM WIDE

Code	Description	File
KBTS18.03B.042.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 4.2m Span, 4.6m Deck Bridge Kit	Download
KBTS18.04B.056.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 5.6m Span, 6m Deck Bridge Kit	Download
KBTS18.05B.070.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 7m Span, 7.4m Deck Bridge Kit	Download
KBTS18.06B.084.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 8.4m Span, 8.8m Deck Bridge Kit	Download
KBTS18.07B.098.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 9.8m Span, 10.2m Deck Bridge Kit	Download
KBTS18.08B.112.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 11.2m Span, 11.6m Deck Bridge Kit	Download
KBTS18.09B.126.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 12.6m Span, 13m Deck Bridge Kit	Download
KBTS18.10B.140.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 14m Span, 14.4m Deck Bridge Kit	Download
KBTS18.11B.154.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 15.4m Span, 15.8m Deck Bridge Kit	Download
KBTS18.12B.168.KIT	KITSET BRIDGES TRAIL & SERVICES – 1800mm Wide, 16.8m Span, 17.2m Deck Bridge Kit	Download

Effective Span	Bridge Length	Flyable State*	Optional Extra Deck Joists	Optional Extra Top Chord Cap	Optional Extra FRP Grating	Total Bridge Weight
4.2m	4.6m	147 kg	18 kg	30 kg	62 kg	257 kg
5.6m	6.0m	180 kg	24 kg	39 kg	81 kg	324 kg
7m	7.4m	239 kg	30 kg	48 kg	100 kg	416 kg
8.4m	8.8m	284 kg	35 kg	57 kg	119 kg	495 kg
9.8m	10.2m	331 kg	41 kg	66 kg	138 kg	575 kg
11.2m	11.6m	364 kg	46 kg	75 kg	156 kg	642 kg
12.6m	13.0m	399 kg	52 kg	85 kg	175 kg	710 kg
14m	14.4m	445 kg	58 kg	94 kg	194 kg	790 kg
15.4m	15.8m	492 kg	63 kg	103 kg	213 kg	871 kg
16.8m	17.2m	525 kg	69 kg	112 kg	232 kg	937 kg

Effective Span	Bridge Length	Finished Live Load	Flyable Live Load
4.2m	4.6m	2.5 kPa	1.0 kPa
5.6m	6.0m	2.5 kPa	1.0 kPa
7m	7.4m	2.5 kPa	1.0 kPa
8.4m	8.8m	2.5 kPa	1.0 kPa
9.8m	10.2m	2.5 kPa	1.0 kPa
11.2m	11.6m	2.5 kPa	1.0 kPa
12.6m	13.0m	2.5 kPa	1.0 kPa
14m	14.4m	2.5 kPa	1.0 kPa
15.4m	15.8m	2.5 kPa	1.0 kPa
16.8m	17.2m	2.5 kPa	1.0 kPa

MONKEYTOE BRIDGES

Trail & Service Bridge

Ready to discuss your next project?

1800 953 047

Lyttleton Port

Christchurch City Council

Auckland Council

NZ Navy

OMV

DOC

Port of Auckland

PrimePort

Opotiki District Council

CentrePort Wellington

ARC Design Solutions

PRICING

Trail & SERVICE Bridge - 700mm WIDE

Code

Description

KBTS07.03B.042.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 4.2m Span, 4.6m Deck Bridge Kit

0.7

4.6

2.94

$11,100.00

KBTS07.04B.056.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 5.6m Span, 6m Deck Bridge Kit

0.7

6

3.92

$12,400.00

KBTS07.05B.070.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 7m Span, 7.4m Deck Bridge Kit

0.7

7.4

4.9

$15,100.00

KBTS07.06B.084.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 8.4m Span, 8.8m Deck Bridge Kit

0.7

8.8

5.88

$17,100.00

KBTS07.07B.098.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 9.8m Span, 10.2m Deck Bridge Kit

0.7

10.2

6.86

$19,700.00

KBTS07.08B.112.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 11.2m Span, 11.6m Deck Bridge Kit

0.7

11.6

7.84

$21,500.00

KBTS07.09B.126.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 12.6m Span, 13m Deck Bridge Kit

0.7

13

8.82

$23,500.00

KBTS07.10B.140.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 14m Span, 14.4m Deck Bridge Kit

0.7

14.4

9.8

$25,100.00

KBTS07.11B.154.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 15.4m Span, 15.8m Deck Bridge Kit

0.7

15.8

10.78

$27,600.00

KBTS07.12B.168.KIT

KITSET BRIDGES TRAIL & SERVICES – 700mm Wide, 16.8m Span, 17.2m Deck Bridge Kit

0.7

17.2

11.76

$28,700.00

Trail & SERVICE Bridge - 1200mm WIDE
