HVAC Plant Platforms

Reduce platform weight by 75%

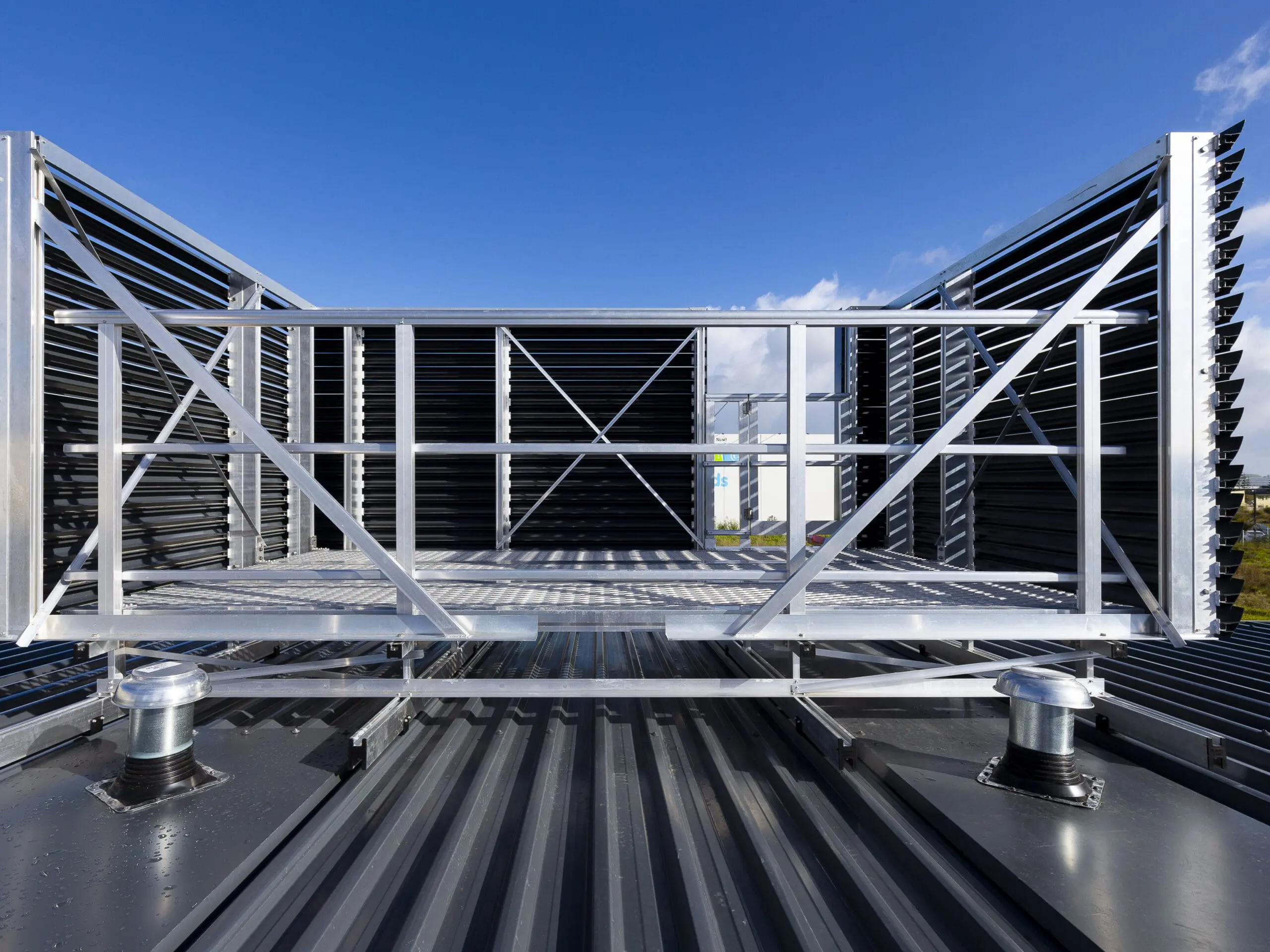

Purlin-Mounted Skeletal Plant Platform

Monkeytoe skeletal platform system that ensures the simple effective installation and mounting of either a series of condenser units, large package units or any heavy duty equipment.

COMPLIANCE

DOWNLOADS

How are weight loadings transferred through to the building structure?

For mechanical plant under 300kg

HELP & ENQUIRY

OUR CLIENTS INCLUDE

Monkeytoe purlin-mount platforms utilise the patented RC01 roofing clip, which is the means by which any weight loadings are transferred back to the building structure. This video explains just how…

FOR MECHANICAL PLANT > 300KG

We recommend one of our off-the-shelf condenser mounts.

PURLIN-MOUNTED SKELETAL PLATFROM

MPT3 SPEC SHEET (PDF)

MPT4 SPEC SHEET (PDF)

MPT6 SPEC SHEET (PDF) | RFA | RVT

Windload Hold Down Bolts (PDF)

SCREENING OPTIONS

There is a range of screening options which are compatible with any Monkeytoe platform or as stand-alone barriers/screens.

Proprietary Aluminium Louvres
HushMonkey Acoustic Barrier (reflective or absorptive)
Louvre-look HushMonkey Acoustic Barrier
Slat Screening

Download your guide here

WHAT FIXING IS BEST FOR MY ROOF?

Click on the below download for a quick guide of which fixing to use on which roofing profile/type

Download your guide here

COMPLIANCE

Physical/Practical load testing of roofing clips witnessed by independent engineers.
• Physical in-situ acoustic testing conducted by Norman Disney & Young Consultants.
• Structural design certificate signed off by certified Australian engineer
• ABCB NCC 2019
• AS 1657
• AS/NZS 11170.0 General Principles
• AS/NZS 1170.1 Permanent , Imposed and other actions
• AS/NZS 1170.2 Wind Actions
• AS/NZS 1170.4 Earthquake actions in Australia
