XGRATE Grating System
XGRATE Grating System
Monkeytoe XGRATE is a revolutionary lightweight aluminium grating system designed for strength, durability, and ease of installation.
COMPLIANCE
DOWNLOADS
What are some of the typical applications of XGRATE?
What are the benefits of XGRATE?
Can XGRATE be used with existing steel beams?
WHAT ARE SOME OF THE TYPICAL APPLICATIONS OF XGRATE?
The Monkeytoe XGRATE Grating System can be utilised with XBEAM Platforms, Purlin Mount Platforms, Chiller Decks, Gantry Walkways and any structure where grating is required over steel supports.
WHAT ARE THE BENEFITS OF XGRATE?
- High strength to weight ratio. 30-50% weight of steel equivalent
- Non-corrosive marine-grade aluminium
- Quick install, low maintenance
- Fully recyclable and sustainable

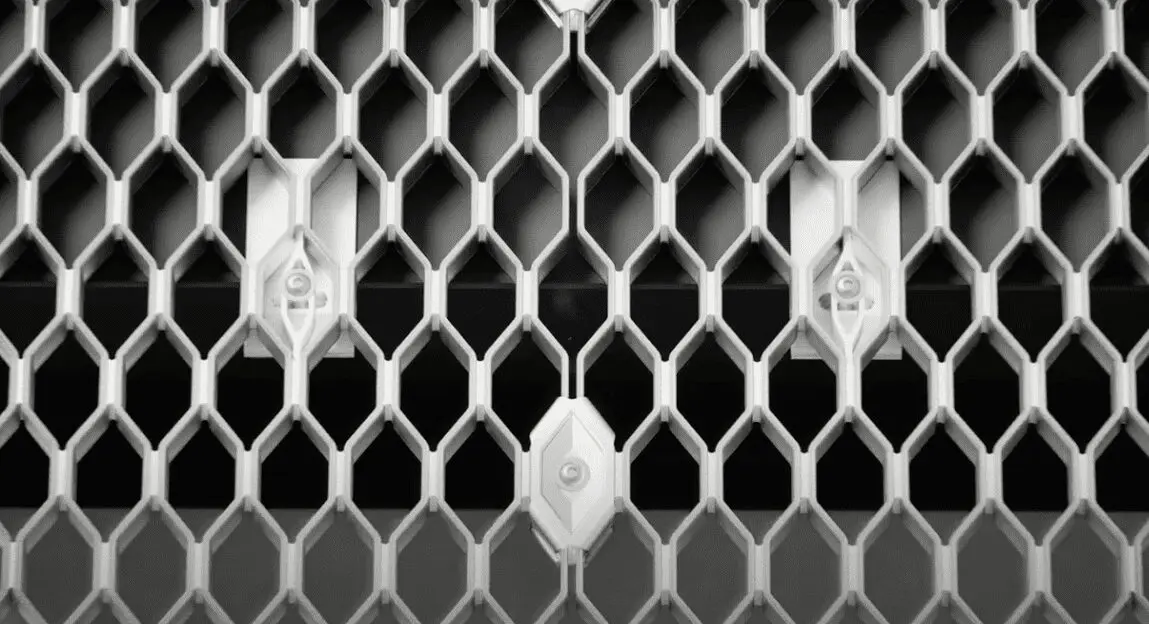

- Galvanically isolated connection to steel structure via Geomet coated beam clamp
- Onsite Flexibility: Ability to be cold cut onsite without recoating
- Options to reduce weight by 60%+ or Embodied Carbon by 70%+
CAN XGRATE BE USED WITH EXISTING STRUCTURAL STEEL BEAMS

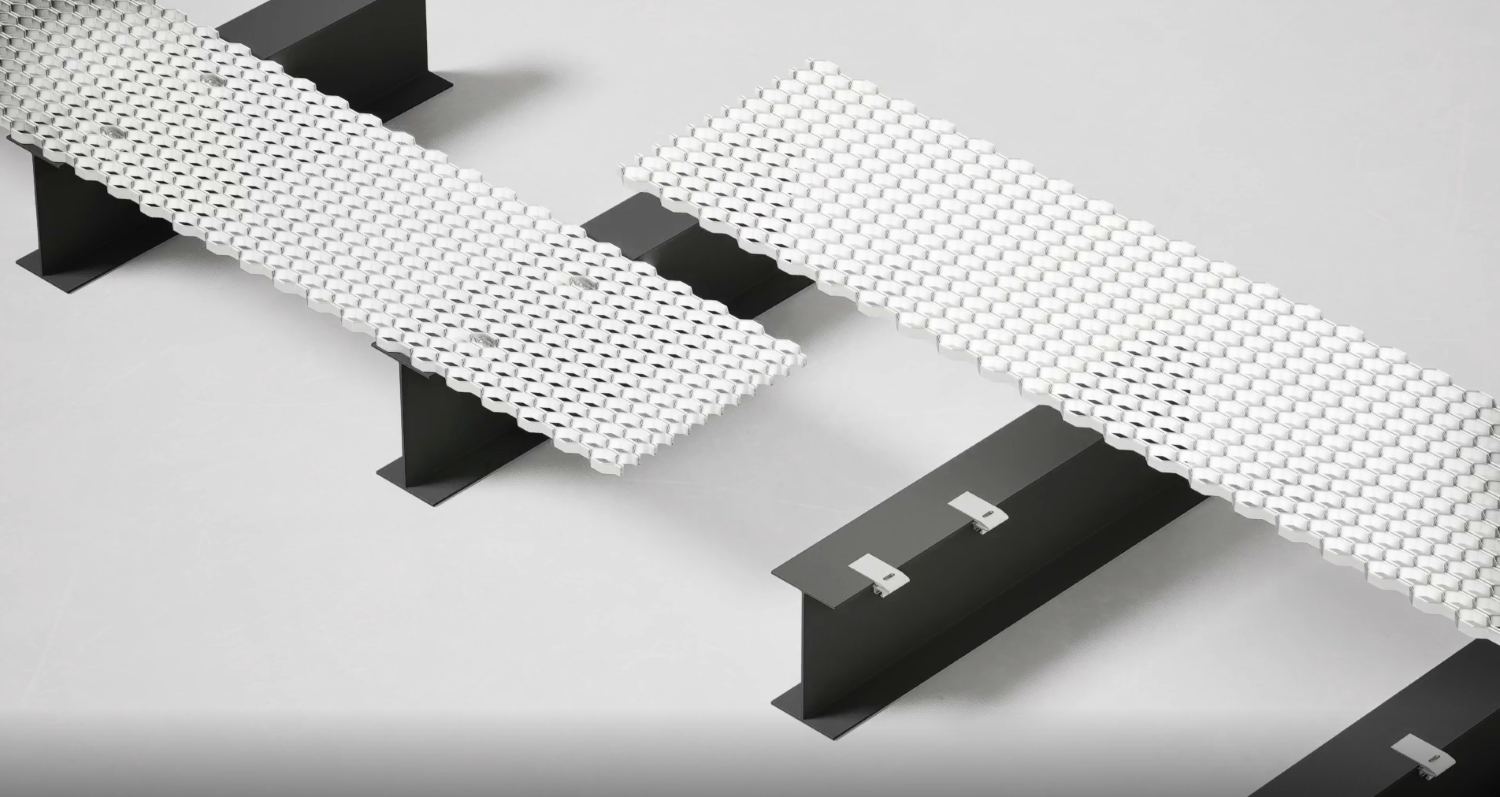

Yes, the XGRATE grating system is compatible with structural steel beams.
COMPLIANCE
- Fully documented testing to ensure compliance to the building code. This includes deflection, distributed and point loads, etc.
- AS 1657:2018 Fixed platforms, walkways, stairways and ladders
- AS/NZS 1170.0 General Principles
- AS/NZS 1170.1 Permanent, Imposed and other actions
- AS/NZS 1170.2 Wind Actions
- AS/NZS 1170.4 Earthquake actions in Australia
- AS/NZS 1866:1997 Aluminium and aluminium alloys – Extruded rod, bar, solid and hollow shapes
- AS/NZS 1664.1:1997 Aluminium structures – Limit state design
